Antennas and Towers:

  • 4 stack of K3LR/W3TX 8 el OWAs on 48' booms, on 140' 45G tower.  Top antenna turned by Prosistel 61D, lower three by KØXG orbital ring rotators  Spacing 140/105/70/35.
  • 2 stack of K3LR/W3TX 9 el OWAs on 60' booms on 55G tower @140' and 105'
  • 8 ele K3LR/W3TX 8 ele 48' boom mounted above top 40M OWA at 190' turned with Prosistel 61D.
  • All towers are guyed with PHILLY and have star guying at all guy levels.
  • All antennas independent and rotate 360 degrees

In The Shack:

  • Icom 7800/Icom 756 ProII (run/mult); Alpha 77/76 Amps; Layered Stackmaster Antenna Switching and Matching.  Control Cabling allows quick change from M/M to SOAB Config.
  • MicroKeyer MKII / WinTest logging software/16 Networked PCs.

Photo Gallery:

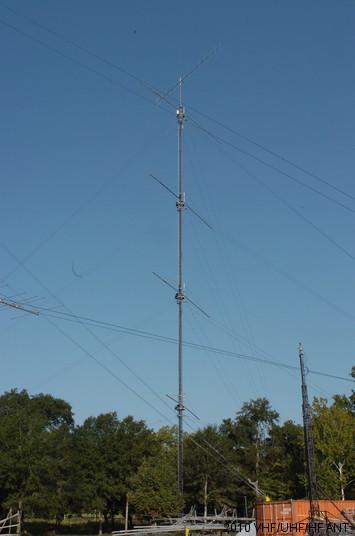

Original 10 stack of station rebuild.  Completed Dec 2007.  8/8/8/8 @ 35/70/105/140.

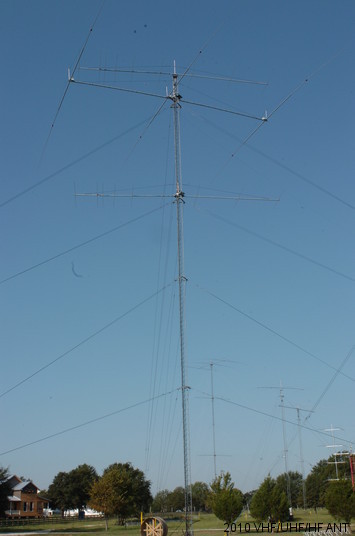

"Short stack" of 10's 9/9 @ 105/140.  Completed mid-2009.  Note the 3 ele 80/75 sandwiched in between.

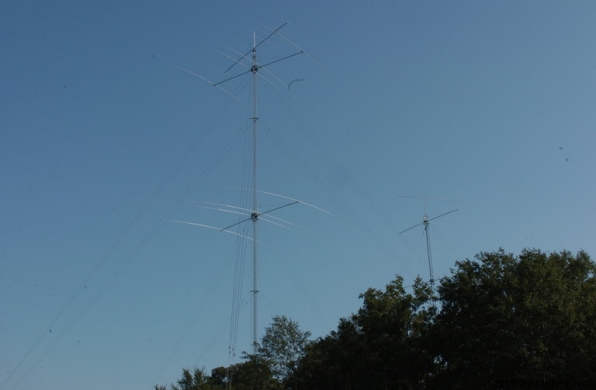

The "Tall 10" 8 ele OWA at 190'.
